UHPMC

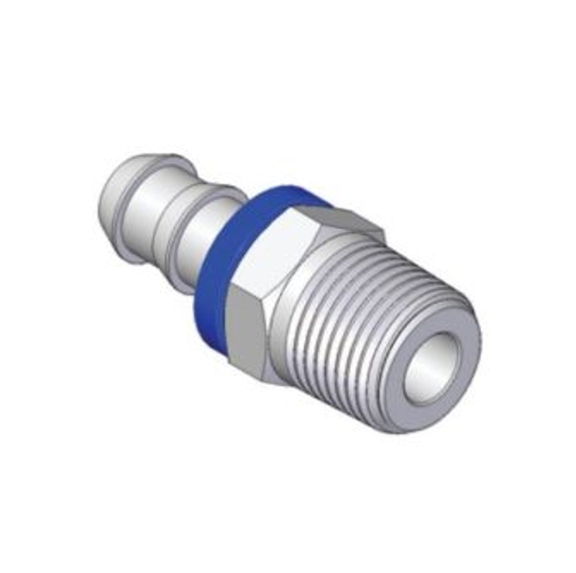

Push-On Hose Male Connector
Category
- Instruments | Fittings | Hose Connectors
Download PDF
- Dimensions
- How To Order
Dimensions
| Connects Hose to Male Pipe | |||||
| Part No. | Hose I.D. | P | Dimensions (mm) | ||
| H | L | L1 | |||
| UHPMC-04H04 | 1/4 | 1/4 | 9/16 | 42.7 | 23.4 |
| UHPMC-06H04 | 3/8 | 1/4 | 11/16 | 45.7 | 23.6 |
| UHPMC-06H06 | 3/8 | 3/8 | 11/16 | 45.7 | 23.6 |
| UHPMC-08H08 | 1/2 | 1/2 | 7/8 | 55.6 | 29.0 |
| UHPMC-12H12 | 3/4 | 3/4 | 1-1/16 | 71.4 | 28.9 |
How To Order
Standard materials is 316SS. To order, add - SS to Cleaning the end of part number.
Example: UHPTFA-08H08T-SS
Cleaning
UNILOK fittings are free from machine oils, loose particles and grease throughout the close cleaning process.
