UHPTA

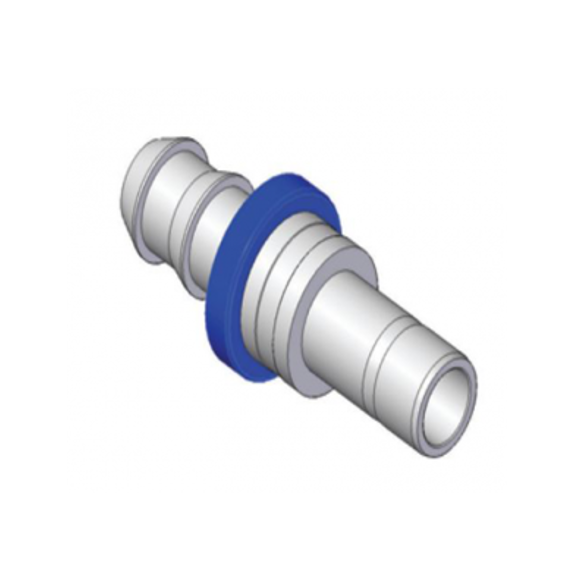

Push-On Hose Tube Adapter
Category
- Instruments | Fittings | Hose Connectors
Download PDF
- Dimensions
- How To Order
Dimensions
| Connects Hose to UNILOK Tube Fitting | ||||
| Part No. | Hose I.D. | Tube O.D. T | Dimensions (mm) | |
| L | L1 | |||
| UHPTA-04H04T | 1/4 | 1/4 | 49.0 | 29.7 |
| UHPTA-06H06T | 3/8 | 3/8 | 51.6 | 29.5 |
| UHPTA-08H08T | 1/2 | 1/2 | 62.7 | 36.1 |
| UHPTA-12H12T | 3/4 | 3/4 | 79.8 | 37.3 |
How To Order
Standard materials is 316SS. To order, add - SS to the end of part number.
Example: UHMC-08H08N-SS
Cleaning
UNILOK fittings are free from machine oils, loose particles and grease throughout the close cleaning process.
