- Dimensions
- Specifications

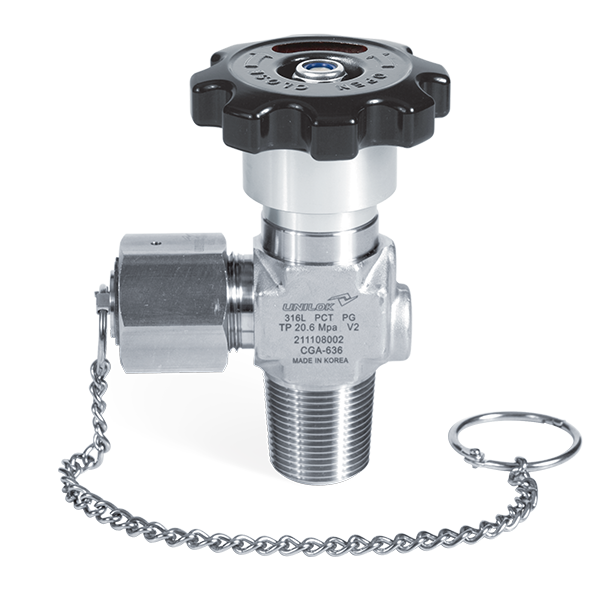

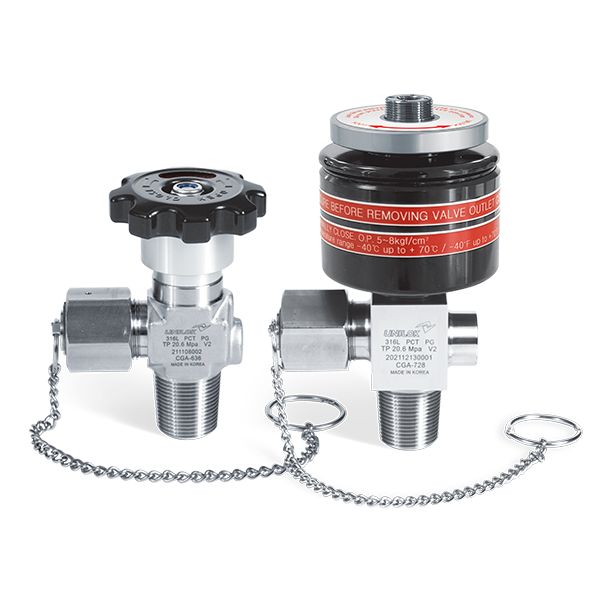

Dimensions
| Part Number | End Connection | Dimensions (mm) | ||||||
| Inlet | Outlet | S | H | h | T | T1 | ||
| VCY100 | D636V2-SL | V2 | DISS 636 | 65 | 110 | 47.3 | 32 | 41 |
| D718V2CG1-SL | DISS 718 | |||||||
| 37 | ||||||||
| J22LV2CG4-SL | JIS22L | |||||||
Specifications
<VCY 100>
| Orifice Size | 4.5mm |
| CV Value | 0.35 |
| Inlet Connection | V2 |
| Outlet Connection | DISS636, DISS718, JIS22L |
| Max Working Pressure | 20.6Mpa(206bar) |
| Max. Working Temperature | -10~80°C |
| Inboard leakage Allowance-He | ≤1x10-9 atm.cc/s |
| Internal leakage Allowance-He | ≤ 1x10-9 atm.cc/s |
