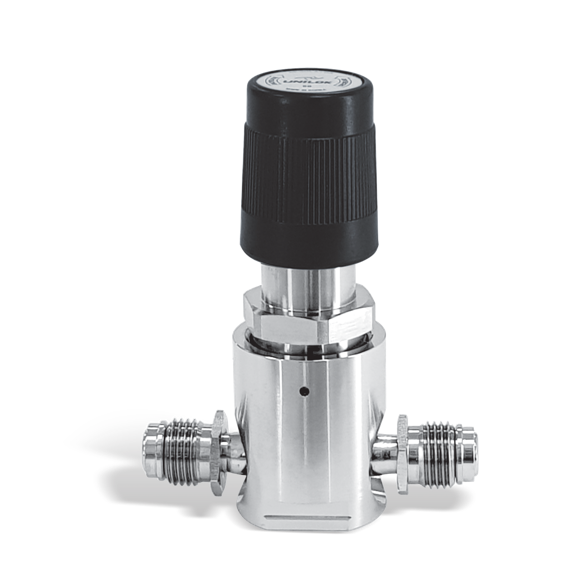

IGS RCM2 Regulator
RCM2 Series
카테고리
- UHP | IGS | Regulator | RCM2 Series
PDF 다운로드
- Dimensions
- How To Order
- Specification
- Gauge Port Option
- Features
Dimensions
| Part No. | End Connection | Dimensions(mm) | |||||
| Inlet | Outlet | STD. Body | A-STYLE Body | ||||
| RCM2 | C-04M- | 1/4” Male UCR Swivel | 70.6 | - | |||

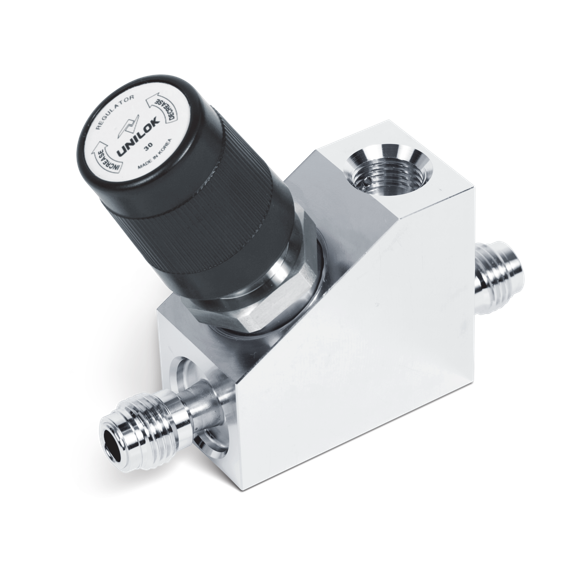

| C-04MX- | 1/4” Male UCR Fixed | 70.6 | 94 | ||||
| C-04F- | 1/4” Female UCR Swivel | 70.6 | 94 | ||||

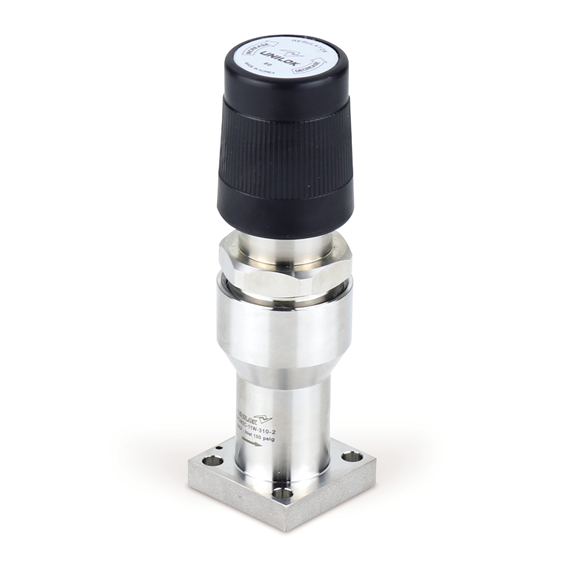

| C-11W- | 1.125" W-Seal | W-Seal 2 PORT BOTTOM VIEW | |||||
| C-11C- | 1.125" C-Seal | C-Seal 2 PORT BOTTOM VIEW | |||||
How To Order
| RCM2 | C | - | 04MX | - | 11 | 0 | - | 2 | ||||
| Regulator Type | Connection Type | Connection Size | Inlet / Outlet Pressure | Gauge Port Option | Outlet Gauge | Body Material | Surface Finish | Trim Material | Seat Material | |||
| Regulator Type | Outlet Pressure Range | Body Material | |||||||||||
| RCM2 | RCM2 Series | 0 | 1~30 psig / 0.1~2.1 bar | 2 | 316L VAR Stainless Steel | ||||||||
| 1 | 1~60 psig / 0.1~4.1 bar | 4 | 316L Stainless Steel | ||||||||||
| Connection Type | 2 | 1~100 psig / 0.1~6.9 bar | |||||||||||
| C-*W | W-Seal | 7 | Preset | Internal Surface Finish | |||||||||
| C-*C | C-Seal | None | EP – Electro Polished | ||||||||||
| C-*M | Male UCR Swivel | Gauge Port Option | BA | BA | |||||||||
| C-*MX | Male UCR Fixed | 0 | None (Fig. A) | ||||||||||
| C-*F | Female UCR Swivel | 1 | 1/4“ Internal UCR (Fig. B) | Trim Material | |||||||||
| 2 | 1/4 “ Male Swivel (Fig. B) | None | 316 SS | ||||||||||
| Connection Size | 3 | 1/4 “ Female Swivel (Fig. B) | H | Hastelloy® | |||||||||
| 11 | 1.125” | ||||||||||||
| 15 | 1.5” | Outlet Gauge | Seat Material | ||||||||||
| 04 | 1/4 ” | None | No Gauge | None | PCTFE | ||||||||
| 0 | 0~30 psig | V | PI | ||||||||||
| Maximum Inlet Pressure | 1 | 0~60 psig | F | PFA | |||||||||
| 1 | 150 psig (0.06 Cv) | 2 | 0~100 psig | T | PTFE | ||||||||
| 3 | 150 psig (0.1 Cv) | ||||||||||||
| 7 | Preset | ||||||||||||
Specification
| Pressure Ratings | |||||
| Per criteria of ANSI/ASME B31.3 | Media Contact Materials | ||||
| Max. Inlet Pressure | 150 psig (10.3 bar) | Body | 316L Stainless Steel | ||
| Diaphragm | Hastelloy® | ||||
| Outlet Pressure Range | 30, 60, 100 psig (2.1, 4.1, 6.9 bar) | Seat | PCTFE (Optional PI, PFA, PTFE) | ||
| Poppet | 316L Stainless Steel or Inconel® | ||||
| Design Proof Pressure | 150% of maximum rated | Rear Seal | 316L Stainless Steel or Hastelloy® | ||
| Operating Temperature | Internal Surface Finish | ||||
| PCTFE Seat | -40~60°C (-40°F~140°F) | Designator | Surface Finish(µm) | ||
| PI Seat | -40~177°C (-40°F~350°F) | Average | Maximum | ||
| PFA Seat | -40~71°C (-40°F~160°F) | BA | ＜ 0.4 | ＜ 1.6 | |
| PTFE Seat | -40~71°C (-40°F~160°F) | EP | ＜ 0.125 | ＜ 0.4 | |
| Flow Capacity | |||||
| Flow Capacity | 0.06 Cv (Optional 0.1 Cv) | ||||
| Helium Leak Test | |||||
| Inboard Leak Rate | 1x10-9 atm cc/sec | ||||
Gauge Port Option
Features
· The RCM2 series ultra high purity, pressure reducing regulator provides precise performance and repeatability
· Compact size
· Low internal volume
· Metal to metal diaphragm seals provide enhanced leak integrity
· Optimum performance and cleanliness at a great value
· All performed in class 100 and class 10 clean rooms
Flow Chart
