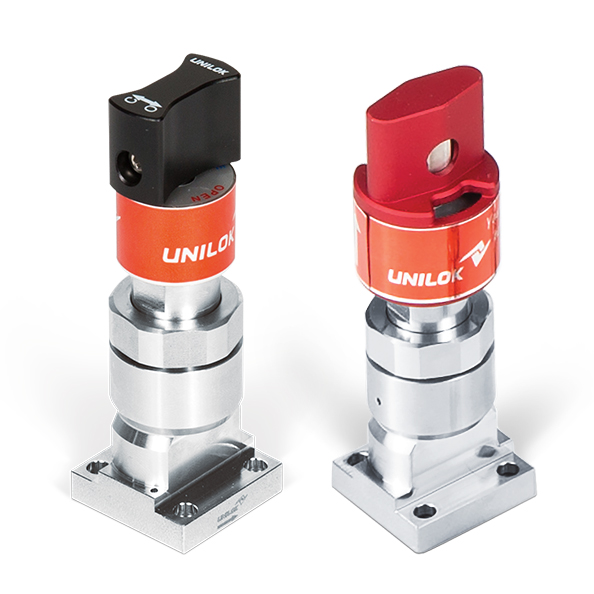

IGS Manual Valve
VCIGS Valve
카테고리
- IGS | UHP Valve | Manual Valve
- Dimensions
- How To Order
- Specifications
Dimensions
| SIZE | CONNECTION TYPE | A | B | C | D | H(LOTO) |
| 1.125” | W-SEAL | 28.6 | 28.6 | 21.8 | 10 | 88.3(93) |
| C-SEAL | 28.6 | 28.6 | 21.8 | 10.9 | 88.3(93) | |
| 1.5” | W-SEAL | 39 | 39 | 30 | 13 | 88.3(93) |
| C-SEAL | 39 | 39 | 30 | 15.5 | 88.3(93) |
How To Order
| VCIGS | MI | R | - | 11W | LOTO | - | 3P | - | - | ||
| PRODUCT
TYPE | OPERATION TYPE | HANDLE COLOR | CONNECTION TYPE /CONNECTION SIZE | VALVE OPTION | CONNECTION OPTION | BODY MATERIAL | SURFACE FINISH |
| PRODUCT TYPE | HANDLE COLOR | CONNECTION TYPE | CONNECTION OPTION | |||||||||||
| VCIGS | IGS VALVE | R | RED | **W | W-SEAL | None | 2 PORT | |||||||
| G | GREEN | **C | C-SEAL | 3P | 3 PORT | |||||||||
| OPERATION TYPE | W | WHITE | ||||||||||||
| MI | MANUAL (SPRING) | B | BLACK | VALVE OPTION | BODY MATERIAL | |||||||||
| MS | MANUAL (SCREW) | None | NONE | None | 316L VAR SS | |||||||||
| CONNECTION SIZE | LOTO | LOCK OUT-TAG OUT | ||||||||||||
| 11* | 1.125” | INTERNAL SURFACE FINISH | ||||||||||||
| 15* | 1.5” | None | ELECTRO POLISHING | |||||||||||
Specifications
| Cv | 0.27 |
| Max. Working Pressure | 10 bar(145psig) |
| Max. Working Temperature | -10~80℃(14~176℉) |
| Internal Leakage Allowance -He | ≤ 1 X 10-9 atm.cc/s |
| External Leakage Allowance -He | ≤ 1 X 10-9 atm.cc/s |
| Materials | Body – 316L VAR SS |
| Seat – PCTFE | |
| Diaphragm - ELGILOY |
