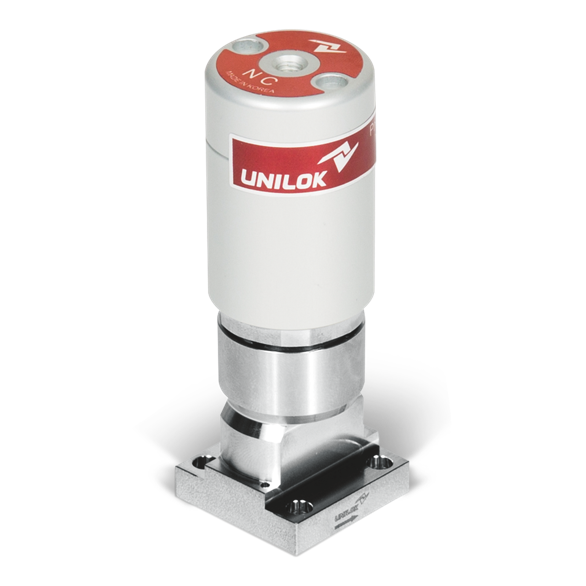

IGS Pneumatic Valve
VCIGS Valve
카테고리
- IGS | UHP Valve | Pneumatic Valve
- Dimensions
- How To Order
- Specifications
Dimensions
| SIZE | CONNECTION TYPE | A | B | C | D | H(P.O) |
| 1.125” | W-SEAL | 28.6 | 28.6 | 21.8 | 10 | 82.3(79.7) |
| C-SEAL | 28.6 | 28.6 | 21.8 | 10.9 | 82.3(79.7) | |
| 1.5” | W-SEAL | 39 | 39 | 30 | 13 | 82.3(79.7) |
| C-SEAL | 39 | 39 | 30 | 15.5 | 82.3(79.7) |
How To Order
| VCIGS | PC | - | 11W | - | - | 3P | - | - | |||
| PRODUCT
TYPE | VALVE TYPE | CONNECTION TYPE /CONNECTION SIZE | VALVE OPTION | CONNECTION OPTION | BODY MATERIAL | SURFACE FINISH | |||||
| PRODUCT TYPE | CONNECTION SIZE | VALVE OPTION | BODY MATERIAL | |||||||||||
| VCIGS | IGS VALVE | 11* | 1.125” | None | NONE | None | 316L VAR SS | |||||||
| 15* | 1.5” | RS | PORXIMITY SENSOR | |||||||||||
| VALVE TYPE | INTERNAL SURFACE FINISH | |||||||||||||
| PC | PNEUMATIC N.C | CONNECTION TYPE | CONNECTION OPTION | None | ELECTRO POLISHING | |||||||||
| PO | PNEUMATIC N.O | **W | W-SEAL | None | 2 PORT | |||||||||
| **C | C-SEAL | 3P | 3 PORT | |||||||||||
Specifications
| Cv | 0.27 |
| Max. Working Pressure | 10 bar(145psig) |
| Max. Working Temperature | -10~80℃(14~176℉) |
| Internal Leakage Allowance -He | ≤ 1 X 10-9 atm.cc/s |
| External Leakage Allowance -He | ≤ 1 X 10-9 atm.cc/s |
| Materials | Body – 316L VAR SS |
| Seat – PCTFE | |
| Diaphragm - ELGILOY | |
| Actuator Operating Pressure | 4~7bar(58~101psig) |
