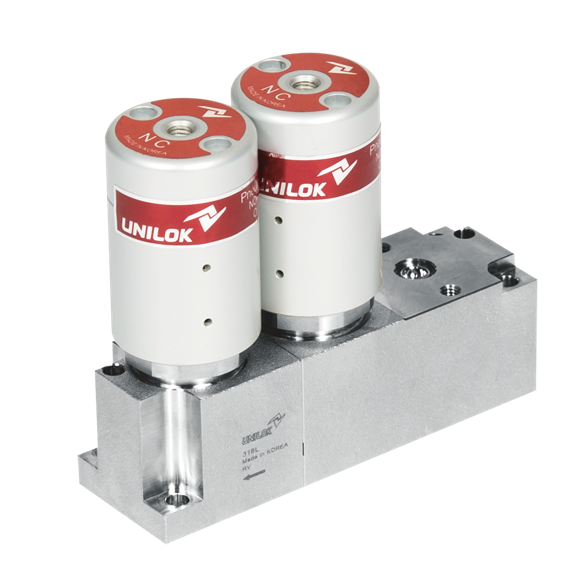

IGS Block Valve
VCIGS Valve
카테고리
- IGS | UHP Valve | Block Valve
- Dimensions
- How To Order
- Specifications
Dimensions
| SIZE | CONNECTION TYPE | A | B | C | D | E | H |
| 1.125” | W-SEAL | 90.6 | 28.6 | 80 | 21.8 | 19.3 | 76.1 |
| 1.5” | 91.5 | 39 | 78.5 | 30 | 22.5 | 76.1 |
How To Order
| VCIGS | BL | - | - | - | 11W | - | RV | - | RS | - | - | ||||
| PRODUCT
TYPE | VALVE TYPE | VALVE 1 OPERATION TYPE | VALVE 2 OPERATION TYPE | CONNECTION TYPE /CONNECTION SIZE | VALVE OPTION 1 | VALVE OPTION 2 | BODY MATERIAL | SURFACE FINISH | |||||||
| PRODUCT TYPE | CONNECTION SIZE | VALVE OPTION 2 | BODY MATERIAL | |||||||||||
| VCIGS | IGS VALVE | 11* | 1.125” | None | NONE | None | 316L VAR SS | |||||||
| 15* | 1.5” | RS1 | PORXIMITY
SENSOR (APPLY VALVE 1 ONLY) | |||||||||||
| OPERATION TYPE | INTERNAL SURFACE FINISH | |||||||||||||
| BL | BLOCK VALVE | CONNECTION TYPE | RS2 | PORXIMITY
SENSOR (APPLY VALVE 2 ONLY) | None | ELECTRO POLISHING | ||||||||
| **W | W-SEAL | |||||||||||||
| VALVE 1/2 OPERATION TYPE | **C | C-SEAL | RS3 | PORXIMITY
SENSOR (APPLY BOTH) | ||||||||||
| None | PNEUMATIC N.C | VALVE OPTION 1 | ||||||||||||
| PO | PNEUMATIC N.O | None | NONE | |||||||||||
| MI | MANUAL (SPRING) | RV | REVERSE TYPE | |||||||||||
| MS | MANUAL(SCREW) | |||||||||||||
Specifications
| Cv | 0.27 |
| Max. Working Pressure | 10 bar(145psig) |
| Max. Working Temperature | -10~80℃(14~176℉) |
| Internal Leakage Allowance -He | ≤ 1 X 10-9 atm.cc/s |
| External Leakage Allowance -He | ≤ 1 X 10-9 atm.cc/s |
| Materials | Body – 316L VAR SS |
| Seat – PCTFE | |
| Diaphragm - ELGILOY | |
| Actuator Operating Pressure | 4~7bar(58~101psig) |
