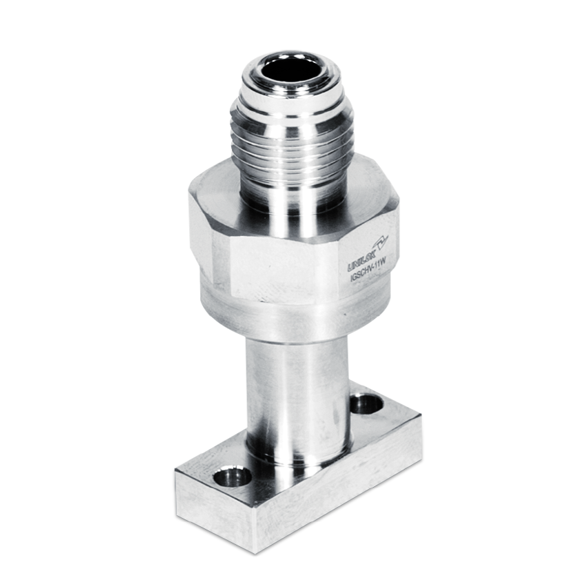

IGS Check Valve
VCIGS Valve
카테고리
- IGS | UHP Valve | Check Valve
- Dimensions
- How To Order
- Specifications
Dimensions
| IN LINE CHECK VALVE | ||||||||
| SIZE | CONNECTION TYPE | A | B | C | D | H | ||
| 1.125” | W-SEAL | 28.6 | 28.6 | 21.8 | 10 | 47.3 | ||
| C-SEAL | 28.6 | 28.6 | 21.8 | 10.9 | 47.3 | |||
| 1.5” | W-SEAL | 39 | 39 | 30 | 13 | 47.3 | ||
| C-SEAL | 39 | 39 | 30 | 15.5 | 47.3 | |||
| PURGE CHECK VALVE | ||||||||
| INLET | OUTLET | A | B | C | D | H | ||
| CONNECTION | ||||||||
| SIZE | TYPE | SIZE | TYPE | |||||
| 1/4” | VCR MALE | 1.125” | W-SEAL | 28.6 | 13 | 21.8 | 6.5 | 55.05 |
| 1.5” | 39 | 39 | 30 | 9 | 50.05 | |||
How To Order
| VCIGS | CHV | - | 04M | 11W | - | TM | - | - | - | |||
| PRODUCT
TYPE | VALVE TYPE | CONNECTION
TYPE /CONNECTION SIZE | VALVE TYPE | RUBBER OPTION | BODY MATERIAL | SURFACE FINISH | ||||||
| PRODUCT TYPE | CONNECTION SIZE | RUBBER OPTION | BODY MATERIAL | |||||||||||
| VCIGS | IGS VALVE | 11* | 1.125” | P | NEOPRENE | None | 316L VAR SS | |||||||
| 15* | 1.5” | E | ETHYLENE
PROPYLENE | |||||||||||
| VALVE TYPE | INTERNAL SURFACE FINISH | |||||||||||||
| CHV-***- TM | IN
LINE CHECK VALVE | CONNECTION TYPE | None | ELECTRO POLISHING | ||||||||||
| **W | W-SEAL | |||||||||||||
| CHV 04M*** | CHECK
VALVE (PURGE TYPE) | **C | C-SEAL | |||||||||||
Specifications
| Cv | 0.27 |
| Max. Working Pressure | 3000 psig(206 bar) |
| Max. Working Temperature | -10~80℃(14~176℉) |
| Reseal Pressure | < 2psig(0.14 bar) |
| External Leakage Allowance -He | Up to 5~10 psig(0.34~0.69 bar) |
| Materials | Body – 316L VAR SS |
| Seat – FKM(VITON) | |
| Plate Spring - ELGILOY |
