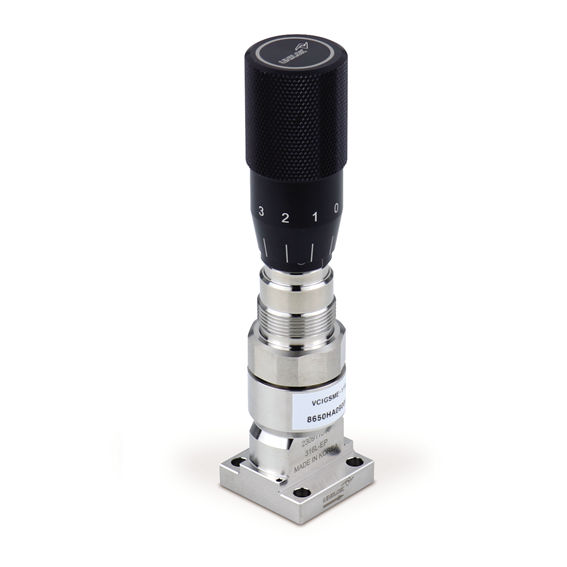

IGS Metering Valve
VCIGS Valve
카테고리
- IGS | UHP Valve | Metering Valve
- Dimensions
- How To Order
- Specifications
Dimensions
| SIZE | CONNECTION TYPE | A | B | C | D | H(CAP) |
| 1.125” | W-SEAL | 28.6 | 28.6 | 21.8 | 10 | 120(135.9) |
| C-SEAL | 28.6 | 28.6 | 21.8 | 10.9 | 120(135.9) | |
| 1.5” | W-SEAL | 39 | 39 | 30 | 13 | 120(135.9) |
| C-SEAL | 39 | 39 | 30 | 15.5 | 120(135.9) |
How To Order
| VCIGS | ME | - | 11W | - | CP | - | 3P | - | - | ||
| PRODUCT
TYPE | VALVE TYPE | CONNECTION TYPE /CONNECTION SIZE | VALVE OPTION | CONNECTION OPTION | BODY MATERIAL | SURFACE FINISH | |||||
| PRODUCT TYPE | CONNECTION SIZE | VALVE OPTION | BODY MATERIAL | |||||||||||
| VCIGS | IGS VALVE | 11* | 1.125” | None | NONE | None | 316L VAR SS | |||||||
| 15* | 1.5” | CP | PROTECTION CAP | |||||||||||
| VALVE TYPE | INTERNAL SURFACE FINISH | |||||||||||||
| ME | METERING | CONNECTION TYPE | CONNECTION OPTION | None | ELECTRO POLISHING | |||||||||
| **W | W-SEAL | None | 2 PORT | |||||||||||
| **C | C-SEAL | 3P | 3 PORT | |||||||||||
Specifications
| Cv | 0.065~ |
| Max. Working Pressure | 10 bar(145psig) |
| Max. Working Temperature | -10~80℃(14~176℉) |
| External Leakage Allowance –He | ≤ 1 X 10-9 atm.cc/s |
| Materials | Body – 316L VAR SS |
| Diaphragm - ELGILOY |
