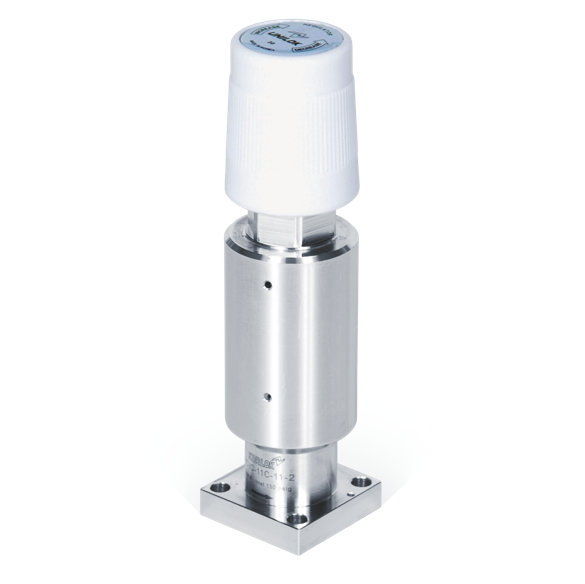

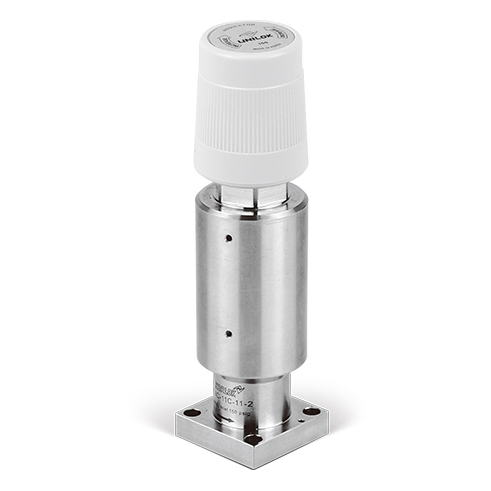

IGS RCI Regulator
RCI REGULATOR
카테고리
- IGS | UHP REGULATOR | RCI REGULATOR
- Dimensions
- How To Order
- Specifications
- Features
Dimensions
| Part No. | End Connection | A | B | C | D | H | ||
| Inlet | Outlet | |||||||
| RCI | C-11W- | 1.125” W-Seal | 28.6 | 28.6 | 21.8 | 10 | 117.5 | |
| C-11C- | 1.125” C-Seal | 28.6 | 28.6 | 21.8 | 10.9 | 117.5 | ||
| C-15W- | 1.5” W-Seal | 39.0 | 39.0 | 30.0 | 13.0 | 119.0 | ||
| C-15C- | 1.5” C-Seal | 39.0 | 39.0 | 30.2 | 15.5 | 119.0 | ||
How To Order
| RCI | C | - | 11W | - | 11 | 0 | - | 2 | H | ||
| Regulator Type | Connection Type | Connection Size | Inlet / Outlet Pressure | Gauge Port Option | Body Material | Surface Finish | Trim Material | Seat Material | |||
| Regulator Type | Maximum Inlet Pressure | Body Material | |||||||||||
| RCI | UHP Regulator | 1 | 150 psig / 10.3 bar (0.04 Cv) | 2 | 316L VAR Stainless Steel | ||||||||
| 3 | 150 psig / 10.3 bar (0.08 Cv) | ||||||||||||
| Connection Type | Internal Surface Finish | ||||||||||||
| C-*W | W-Seal | Outlet Pressure Range | None | EP – Electro Polished | |||||||||
| C-*C | C-Seal | 0 | 1~30 psig / 0.1~2.1 bar | BA | BA | ||||||||
| C-*M | Male UCR | 1 | 1~60 psig / 0.1~4.1 bar | ||||||||||
| C-*F | Female UCR Swivel | 2 | 1~100 psig / 0.1~6.9 bar | Trim Material | |||||||||
| H | Hastelloy® | ||||||||||||
| Connection Size | Gauge Port Option | ||||||||||||
| 11 | 1.125” | 0 | None (Fig. A) | Seat Material | |||||||||
| 15 | 1.5” | 1 | 1/4 Internal UCR(Fig.B) | None | PCTFE | ||||||||
| 04 | 1/4 inch | V | PI | ||||||||||
| T | PTFE | ||||||||||||
| F | PFA | ||||||||||||
Specifications
| Pressure Ratings | Max. Inlet Pressure | 150 psig |
| Outlet Pressure | 30, 60, 100 psig | |
| Design Proof Pressure | 150% of maximum rated | |
| Operating Temperature | PCTFE Seat | -40~60℃ (-40℉~140℉) |
| Pl Seat | -40~177℃ (-40℉~350℉) | |
| PFA Seat | -40~71℃ (-40℉~160℉) | |
| Flow Capacity | Flow Capacity | 0.04 Cv (Optional 0.08 Cv) |
| Helium Leak Test | Inboard Leak Rate | 1x10-9 atm cc/sec He |
| Media Contact Materials | Body | 316L VAR Stainless Steel |
| Diaphragm | Hastelloy® | |
| Seat | PCTFE (Optional PI) | |
| Poppet | Hastelloy® | |
| Internal Surface Finish | BA | Average < 0.4 Maximum < 1.6 |
| EP | Average＜ 0.125 Maximum＜ 0.4 |
