Dimensions
· Max Operating Pressure : 1000psig (69bar) at 38 ℃(100 ℉) with PTFE seat / 1000psig(69bar) at 170 ℃(338 ℉) with PEEK seat
· Connection Type : Both UNILOK tube fittings
· Handle Type : Lever, Butterfly and Bar
| Part No. | End Connection | Orifice | Dimensions (mm) | ||||
| Inlet | Outlet | h(Hex) | L | H | |||

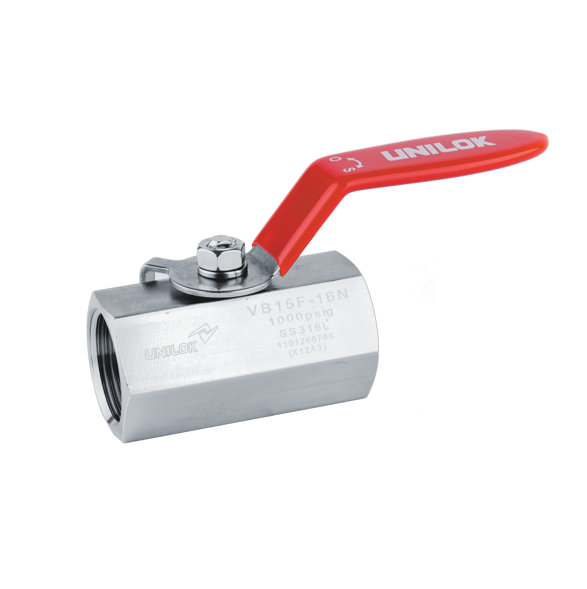

| VB11 | F-04N- | 1/4" Female NPT | 5.0 | 17.46 | 40.0 | 29.0 | |
| VB12 | F-06N- | 3/8" Female NPT | 7.5 | 22.22 | 45.0 | 35.7 | |
| VB13 | F-08N- | 1/2" Female NPT | 9.0 | 26.98 | 54.5 | 38.1 | |
| VB14 | F-12N- | 3/4" Female NPT | 12.5 | 31.75 | 61.0 | 44.5 | |
| VB15 | F-16N- | 1" Female NPT | 16.0 | 38.10 | 75.0 | 48.0 | |
| Female ISO7/1 Tapered Threads (PT) are available for all fractional sizes of VB1F series valves. Add “R” as a suffix instead of “N”. | |||||||
How To Order
UNILOK VB1 series ball valves are ordered by part number as shown below.
Example: The following part number, VB1U-04T-SS-B is designated for VB1 series ball valve with both 1/4" UNILOK tube fitting, 316SS, PTFE seat, butterfly handle.
| V | B1 | F | - | 04T | - | SS | - | B | - | |
| UNILOK Valve | Valve Type | Connection type | Connection Size | Body Materials | Handle Type | Seat Materials | ||||
| Connection Type | Connection Size | Hadle Type | |||||||||||||
| U | UNILOK Tube Fitting | Fractional(Inch) Tube O.D. Designation | None | Lever Handle | |||||||||||
| F | Female NPT or ISO7/1(PT) | Tube O.D. | inch | 1/4 | 3/8 | 1/2 | 3/4 | 1 | B | Butterfly Handle | |||||
| WB-*T | Butt Weld-Tube | mm | 6.35 | 9.52 | 12.70 | 19.05 | 25.40 | PR | Nylon Bar Handle | Red | |||||
| WB-*P | Butt Weld-Pipe | Designator | 04T | 06T | 08T | 12T | 16T | PS | Blue | ||||||
| PB | Black | ||||||||||||||
| Metric Tube O.D. Designation | |||||||||||||||
| Tube O.D. | mm | 6 | 8 | 10 | 12 | 25 | Seat Materials | ||||||||
| Designator | M06T | M08T | M10T | M12T | M25T | None | PTFE | ||||||||
| TFM | TFM | ||||||||||||||
| Pipe Size O.D. Designation | PK | PEEK | |||||||||||||
| Pipe O.D. | Normal | 15A | 20A | 25A | |||||||||||
| mm | 21.7 | 27.2 | 34.0 | ||||||||||||
| Designator | 15A | 20A | 25A | ||||||||||||
| Pipe Size Designation (NPT or ISO7/1-PT) | |||||||||||||||
| Pipe Size | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | |||||||||
| Designator | 02N/R | 04N/R | 06N/R | 08N/R | 12N/R | 16N/R | |||||||||
Application
Steam, water, and air lines for onshore and offshore applications.
Utility lines in the semiconductor and display panel industries.
Protection Cover
Maintain fluid temperature, keep track of handle position, and visually distinguish between in-out lines to ensure proper temperature control and line identification.
The VB1 series ball valve features a 3/4″ UNILOK end connection and a plastic bar handle.
The 1/2″ variant is available with a distinct inner cover size.
Type of Handle
Bar handles provide visual distinction for in-out lines in high-purity applications.
Testing
Every valve undergoes 100% factory testing using air and nitrogen at 1000 psig (69 bar) to check for leakage at the seat and packing.
Each test is conducted with a maximum allowable leak rate of 0.1 scc/min.
Cleaning
UNILOK valves are free from machine oils, loose particles, and grease throughout the thorough cleaning process.
Special cleaning for high-purity applications is available upon request.
Important Notification
UNILOK ball valves are designed to operate in a fully open or fully closed position.
Packing adjustment may be required during the valve's service life.
The responsibility for proper installation, materials compatibility, operation, and maintenance lies with the user.
The total system design must be considered to ensure optimal performance and safety.
Features
Pressure rating up to 1000psig (69bar) with PTFE seats and 2000psig(137bar) with TFM only for VB1F series ball valves with lever handle Easy to operate owing to low torque quarter turn actuation.
All valve body’s made from 316SS bar stock to secure the high integrity.
Compact one-piece hexagonal body with micro-finished 316SS balls to prevent leakage. Blow-out proof design with internally loaded stem and a variety of handle options.
Wide choice of end connections: UNILOK tube fittings, Female NPT or ISO7/1(PT) threads, Weld Systems.
