VBM1 series
Master key Hex Ball Valves
카테고리
- Instruments | Valve | Master key Hex Ball Valves
- Dimensions
- How To Order
- Features

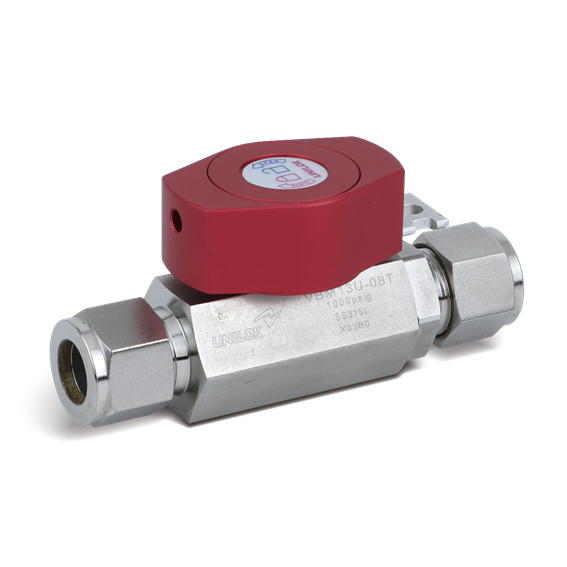

Dimensions
· Max Operating Pressure : 1000 Psig (69 bar) at 38 ℃(100 ℉) with PTFE Seat
· Connection Type : UNILOK Tube Fittings
· Orifice : 9.0mm to 16.0mm
| Part No. | End Connection | Orifice | Dimensions (mm) | |||||
| Inlet | Outlet | h(Hex) | L | L1 | H | |||
| VBM13 | U-08T | 1/2" UNILOK | 9.0 | 26.98 | 101.6 | 35.0 | 50.0 | |
| U-M12T | 12mm UNILOK | |||||||
| VBM14 | U-12T | 3/4" UNILOK | 12.5 | 31.75 | 107.5 | 41.6 | 60.0 | |
| VBM15 | U-16T | 1" UNILOK | 16.0 | 38.1 | 132.6 | 44.7 | 60.0 | |
| U-M25T | 25mm UNILOK | |||||||

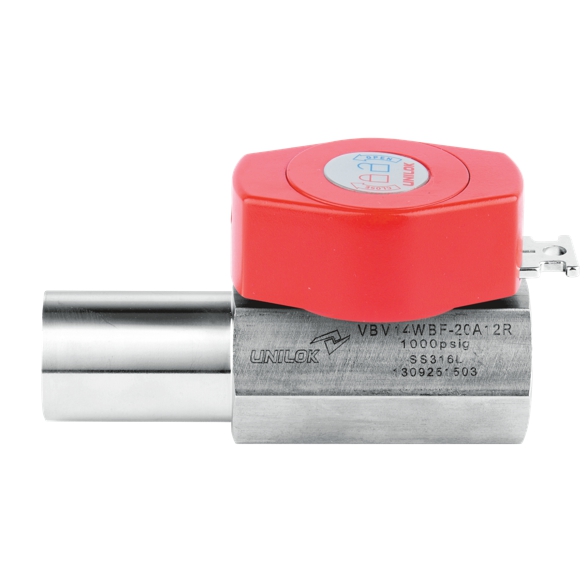

· Max Operating Pressure : 1000 Psig (69 bar) at 38 ℃(100 ℉) with PTFE Seat
· Connection Type : Pipe Butt or Tube Butt Weld Both NPT or ISO 7/1(PT) Female Threads
· Orifice : 9.0mm to 16.0mm
| Part No. | End Connection | Orifice | Dimensions (mm) | |||||||||
| Inlet(P) | Outlet(P1) | h (Hex) | A | I | L | H | W | |||||
| VBM13 | WHF-15A08R | 15A Butt Weld | 1/2 Female PT | 9.0 | 26.98 | 45 | 71.5 | 100.0 | 35.0 | 50.0 | ||
| VBM14 | WHF-20A12R | 20A Butt Weld | 3/4 Female PT | 12.5 | 31.75 | 45 | 73.5 | 105.0 | 41.6 | 60.0 | ||
| VBM15 | WHF-25A16R | 25A Butt Weld | 1 Female PT | 16.0 | 38.1 | 45.0 | 81.0 | 120.0 | 44.7 | 60.0 | ||
How To Order
UNILOK VBM1 series ball valves are ordered by part number as shown belows.
| V | BM1 | U | - | 08T | - | SS | - | - | ||
| UNILOK Valve | Valve Type | Connection type | Connection Size | Body Materials | Handle Color | Seat Materials | ||||
| Valve Type | Connection Size | Handle Color | |||||||||||
| BM1* | Master Key Hex Ball VALVE | Fractional(Inch) Tube O.D. Designation | S | BLUE | |||||||||
| Tube O.D. | inch | 1/2 | 3/4 | 1 | R | RED | |||||||
| Connection Type | mm | 12.7 | 19.05 | 25.40 | |||||||||
| U | UNILOK Tube Fitting | Designator | 08T | 12T | 16T | Seat Materials | |||||||
| F | Female NPT or ISO7/1(PT) | None | PTFE | ||||||||||
| WB-*T | Butt Weld-Tube | Metric Tube O.D. Designation | PK | PEEK | |||||||||
| WB-*P | Butt Weld-Pipe | Tube O.D. | mm | 12 | 20 | 25 | |||||||
| Designator | M12T | M20T | M25T | ||||||||||
| Pipe Size Designation (NPT or ISO7/1-PT) | |||||||||||||
| Pipe Size | 1/2 | 3/4 | 1 | ||||||||||
| Designator | 08N/R | 12N/R | 16N/R | ||||||||||
| Weld Size Designation | |||||||||||||
| Pipe Size | 15A | 20A | 25A | ||||||||||
| Designator | 15A | 20A | 25A | ||||||||||
Features
· Locking handle in open or closed positions.
· Body Materials: Standard 316 stainless steel.
· Compact handle design.
· Low operating torques for the handle.
