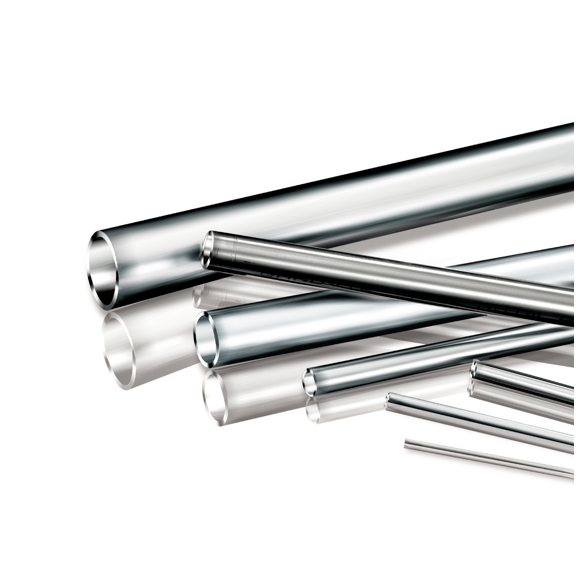

Seamless & Welded Tubing
Seamless & Welded Tubing
카테고리
- Instruments | Seamless & Welded Tubing | Other
PDF 다운로드
- Dimensions
- How To order
- Features
- Materials
Dimensions
| Part No. | Tube O.D | Nominal Wall Thickness (in) | Length | ||
| (in) | (mm) | ||||
| ZTSSG | 02T028L06- | 1/8 | 0.028 | 6000 | |
| 04T035L06- | 1/4 | 0.035 | |||
| 04T049L06- | 0.049 | ||||
| 04T065L06- | 0.065 | ||||
| 06T035L06- | 3/8 | 0.035 | |||
| 06T049L06- | 0.049 | ||||
| 06T065L06- | 0.065 | ||||
| 08T035L06- | 1/2 | 0.035 | |||
| 08T049L06- | 0.049 | ||||
| 08T065L06- | 0.065 | ||||
| 10T065L06- | 5/8 | 0.065 | |||
| 12T065L06- | 3/4 | 0.065 | |||
| 16T083L06- | 1 | 0.083 | |||
| 20T095L06- | 1-1/4 | 0.095 | |||
| 20T120L06- | 0.12 | ||||
| 24T120L06- | 1-1/2 | 0.12 | |||
| 24T134L06- | 0.134 | ||||
| 32T134L06- | 2 | 0.134 | |||
| 32T188L06- | 0.188 | ||||
How To order
| ZT | S | S | M | - | 04 | T035 | L06 | - | SS | - | EP |
| Tubing | Method of manufacture | Shape | Surface Color | Tube O.D. | Nominal Wall Thickness | Length | Material | Surface Finish Level | |||
| Method of manufacture | Tube O.D. Designation | |||||||||||||
| S | Seamless | Tube O.D. | inch | 1/8 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | ~ | 1 | ~ | ||
| W | Welded | mm | 3.17 | 4.76 | 6.35 | 7.93 | 9.52 | 12.7 | ~ | 25.4 | ~ | |||
| HW | Semi-Seamless | Designator | 02 | 03 | 04 | 05 | 06 | 08 | ~ | 16 | ~ | |||
| Shape | Nominal Well Thickness(in) | Materials | ||||||||||||
| S | Straight | T028 | 0.028 | S4 | 304 SS | |||||||||
| C | Coil | T035 | 0.035 | S4L | 304L SS | |||||||||
| T049 | 0.049 | SS | 316 SS | |||||||||||
| Surface Color | ~ | ~ | SL | 316L SS | ||||||||||
| N | Matt | |||||||||||||
| G | Gloss | Length | Surface Finish Level | |||||||||||
| L02 | 2m | AP | Annealing & Pickling | |||||||||||
| L03 | 3m | BA | Bright Annealing | |||||||||||
| L04 | 4m | EP | Electro Polishing | |||||||||||
| L06 | 6m | |||||||||||||
Features
- Quality mother pipes as raw materials.
- Excellent finished inner and outer surface by precision cold drawn.
- Strict size tolerance control in accordance with ASTM standards.
- Fully bright annealed for outstanding corrosion resistance for both seamless and welded tubing.
- Exact hardness for proper tubing.
- ECT (Eddy Current Test) for every piece of tubing
- Guaranteed application for all UNILOK tube fittings and valves with UNILOK ports.
Materials
| Grade | ASTM | UNS | ASME |
| 304 | A213/A269 TP304 | S30400/S30403 | SA213 |
| 304L | A213/A269 TP304L | ||
| 316 | A213/A269 TP316 | S31600/S31603 | SA213 |
| 316L | A213/A269 TP316L |
Alloy 400(Monel), Alloy 625(Inconel 625)
Alloy 825, Alloy C276 (Hastelloy C-276)
Duplex, Super Duplex
