- Dimensions
- How To Order
- Specification
- Features

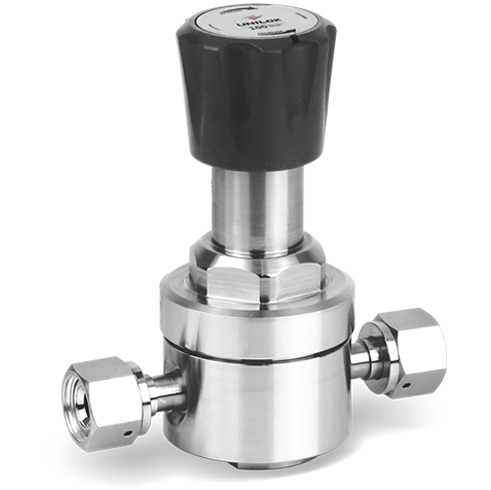

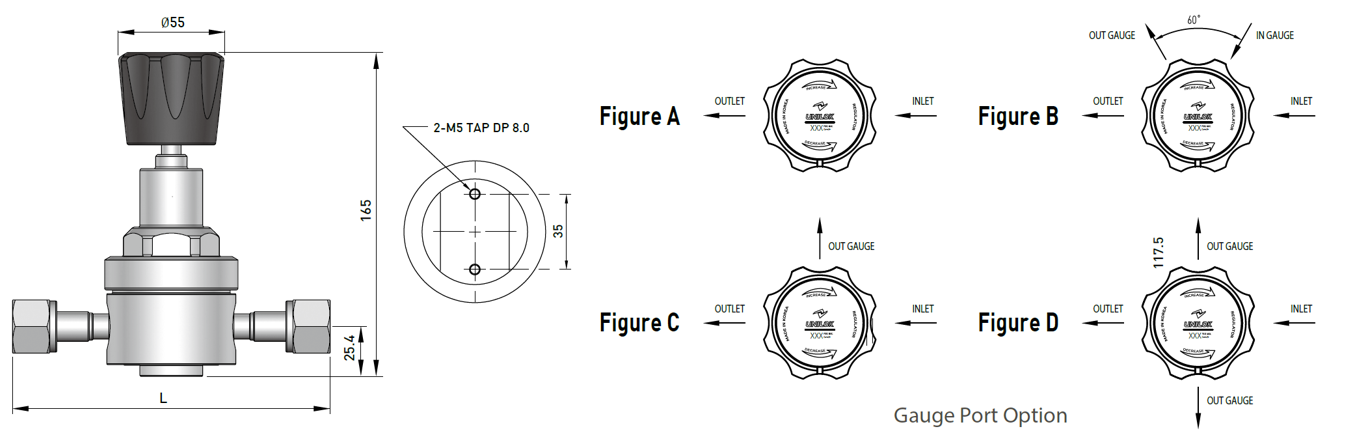

Dimensions
| Part Number | End Connection | Dimensions(mm) | ||
| Inlet | Outlet | L ± 1 | ||
| RC03 | C-04M- | 1/4” Male UCR Swivel | 101.6 | |
| C-04F- | 1/4” Female UCR Swivel | 94 | ||
| C-08M- | 1/2” Male UCR Swivel | 132.6 | ||
| C-08F- | 1/2” Female UCR Swivel | 132.6 | ||
| C-12M- | 3/4” Male UCR Swivel | 159 | ||
| C-12F- | 3/4” Female UCR Swivel | 159 | ||
| WB-08T- | 1/2” Tube Butt Weld | 110.2 | ||
| WB-12T- | 3/4” Tube Butt Weld | 127 | ||
| Dimensions are for 80and are subject to change without prior notice. | ||||
How To Order
| RC03 | C | ▬ | 08F | ▬ | 22 | 0 | ▬ | 2 | |||||
| Regulator Type |
Connection Type |
Connection Size |
Inlet / Outlet Pressure |
Gauge Port Option |
Outlet Gauge |
Inlet Gauge |
Body Material |
Surface Finish |
Trim Material |
Seat Material |
| Regulator Type | Gauge Port Option | Inlet Gauge | |||||
| RC03 | RC03 series | 0 | None (Fig. A) | None | No Gauge | ||
| 1 | 1/4“ Internal UCR (Fig. B) | A | 0~600 psig | ||||
| Connection Type | 2 | 1/4“ Internal UCR (Fig. C) | B | 0~1000 psig | |||
| C-*M | Male UCR Swivel | 3 | 1/4“ Internal UCR (Fig. D) | ||||
| C-*F | Female UCR Swivel | 4 | 1/4“ Male Swivel (Fig. B) | Body Material | |||
| WB-*T | Tube Butt Weld | 5 | 1/4“ Male Swivel (Fig. C) | 2 | 316L VAR Stainless Steel | ||
| U-*T | UNILOK Tube Fitting | 6 | 1/4“ Male Swivel (Fig. D) | 4 | 316L Stainless Steel | ||
| 7 | 1/4“ Femal Swivel (Fig. B) | ||||||
| Connection Size | 8 | 1/4“ Femal Swivel (Fig. C) | Internal Surface Finish | ||||
| 04 | 1/4 inch | 9 | 1/4“ Femal Swivel (Fig. D) | None | EP – Electro Polished | ||
| 08 | 1/2 inch | BA | BA | ||||
| 12 | 3/4 inch | Outlet Gauge | |||||
| None | No Gauage | Trim Material | |||||
| Maximum Inlet Pressure | 0 | 0~30 psig | None | 316 SS | |||
| 1 | 600 psig / 41.4 bar | 1 | 0~60 psig | H | Hastelloy® | ||
| 2 | 300 psig / 20.7 bar | 2 | 0~100 psig | ||||
| 3 | 0~160 psig | Seat Material | |||||
| Outlet Pressure Range | 4 | 0~200 psig | None | PCTFE | |||
| 0 | 1~30 psig / 0.1~2.1 bar | V | PI | ||||
| 1 | 1~60 psig / 0.1~4.1 bar | ||||||
| 2 | 1~100 psig / 0.1~6.9 bar | ||||||
| 3 | 1~130 psig / 0.1~8.9 bar | ||||||
| 4 | 1~150 psig / 0.1~10.3 bar | ||||||
Specification
| Pressure Ratings | |||||
| Per criteria of ANSI/ASME B31.3 | Media Contact Materials | ||||
| Max. Inlet Pressure | 300, 600 psig (20.7, 41.4 bar) |
Body | 316L Stainless Steel | ||
| Diaphragm | Hastelloy® | ||||
| Outlet Pressure Range |
30,
60, 100, 130, 150 psig (2.1, 4.1, 6.9, 8.9, 10.3bar) |
Seat | PCTFE (Optional PI) | ||
| Spring | 316 Stainless Steel or Inconel® | ||||
| Design Proof Pressure | 150% of maximum rated | Poppet, Retainer | 316L Stainless Steel or Hastelloy® | ||
| Operating Temperature | Internal Surface Finish | ||||
| PCTFE Seat | -40~71℃ (-40℉~160℉) | Description | Surface Finish(μm) | ||
| PI Seat | -40~177℃ (-40℉~350℉) | Average | Maximum | ||
| BA | ＜ 0.4 | ＜ 1.6 | |||
| Flow Capacity | EP | ＜ 0.125 | ＜ 0.4 | ||
| Flow Capacity | 1.1 Cv | ||||
| Helium Leak Test | |||||
| Inboard Leak Rate | 1x10-9 atm cc/sec | ||||
Features
| · The RC03 series provides excellent stability of set pressure with accuracy, sensitivity. |
| · Metal to metal diaphragm seals provide enhanced leak integrity |
| · Optimum performance and cleanliness at a great value |
| · High flow design for bulk gas supply |
| · Adjustable stop to limit outlet pressure |
| · All performed in class 100 and class 10 clean rooms |

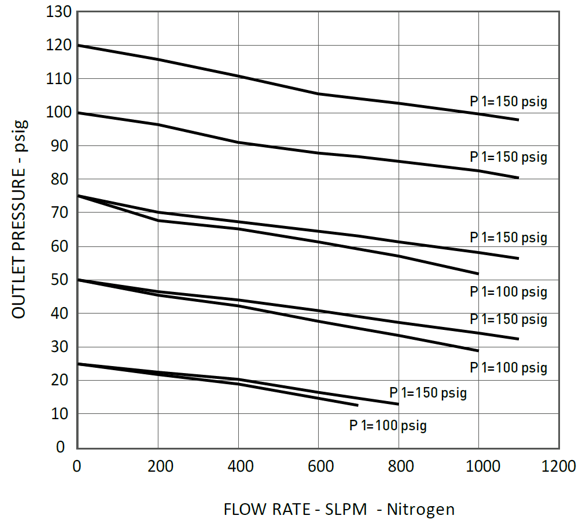

Flow Chart
|
