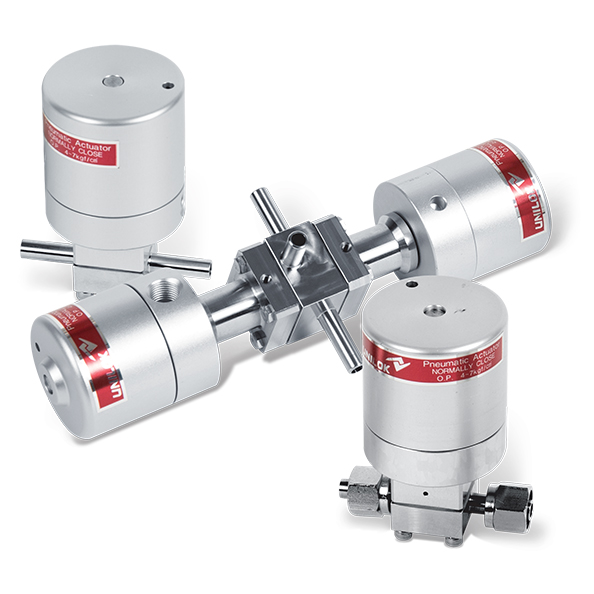

VCCDAU series (Chemical Valve)
Chemical Valve
카테고리
- UHP | Valves | Chemical Valve
PDF 다운로드
- Dimensions
- How To Order
- Specification
Dimensions
| Part No. | Connection Size | Orifice | Dimensions (mm) | ||||||
| mm | L | A | B | C | D | ||||
| VCCDAU-04T-PCR-SL | 2way / 1/4 inch Tube | 4.35 | 71.8 | 43 | 59.5 | 6.35 | 18.75 | ||
| VCCDAU-FP304T-PCR-SL | 3way / 1/4 inch Tube | 4.35 | 171.9 | 40 | 67.2 | 6.35 | 20.6 | ||
How To Order
| VCCDAU | FP3 | - | 04T | - | PCR | - | SL | ||
| Valve Type | Flow Type | Connection Size / Type1 | Operation Type | Body Material | |||||
| Valve Type | Connection Size | Body Material | |||||||||||
| VCCDAU | Chemical Valve | 04 | 1/4" / 6.35mm | SL | 316L SS | ||||||||
| Flow Type | Connection Type1 | ||||||||||||
| 2 way | None | T | Tube Fitting | ||||||||||
| 3 way | FP3 | ||||||||||||
| Operation Type | |||||||||||||
| PCR | Pneumatic Normal Close | ||||||||||||
Specification
| ITEM | Chemical Valve |
| Orifice Size | Ø4.35mm |
| CV Value | 0.6 |
| Max Working Pressure | 6 bar (87psig) |
| Max. Working Temperature | 0~130˚ |
| Operation working Pressure | 4~6 bar |
| Internal leakage Allowance-He |
≤1x10-9 atm.cc/s |
| External leakage Allowance-he |
≤1x10-9 atm.cc/s |
